Water Level Meter

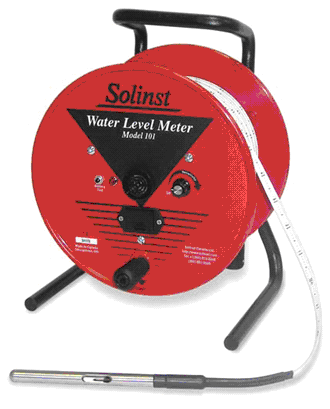

 Model 101


For measuring the depth of water in wells, boreholes, and standpipes, the Model 101 Water Level Meter is the most accurate and reliable of the Solinst meters. It is easy to operate and read to 1/100 ft. or to each millimeter. Also available, from Solinst, is the less expensive Model 102 Coaxial Cable Water Level Meter for use in small diameter tubes.



The Model 101 Water Level Meter uses a choice of probe designs, attached to a permanently marked polyethylene tape, fitted on a well-balanced reel. It is powered by a standard 9 volt battery housed in an easy-access battery drawer. The conductors embedded within the tape each have seven strands of stainless steel for strength and flexibility. The probe incorporates an insulating gap between electrodes. When contact is made with water, the circuit is completed, activating a loud buzzer and a light. The water level is then determined by taking a reading directly from the tape at the top of the well casing or borehole.




Tape Specifications

The high quality polyethylene tape reels smoothly, remains flexible and hangs straight in the well, irrespective of temperature. Permanent markings each millimeter or 1/100 ft. allow accurate readings, traceable to national standards. Stranded stainless steel conductors resist corrosion, provide strength and are non-stretch. They make the tape very easy to repair and splice. The dog-bone design reduces adherence to wet surfaces. Markings are permanently impregnated onto one side of the tape in your choice of scale.




Narrow Mini 101

The Mini 101 Water Level Meter is ideal for use in narrow diameter applications as small as 3/8” (10 mm). The narrow 1/4” (6 mm) tape is mounted on a convenient small reel that is light weight and fits easily into a backpack. The accurate, flat white tape is marked each 1/100 ft. or each mm. The Mini 101 is available in 30 ft, 65 ft, 10m and 20m lengths. The P1 probe is designed to be as small as possible, with a diameter of 0.3” (7.6mm) and the P2 probe has a diameter of 0.375” (9.5mm) and is a little heavier. Both probes have segmented weights.

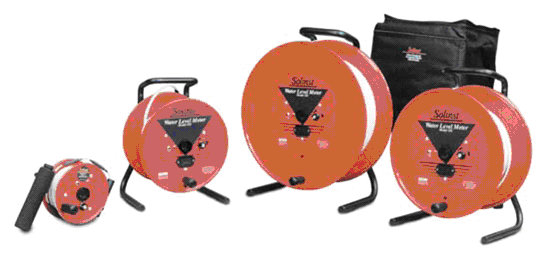

Reel

Standard reels are ergonomically designed for good balance and ease of use, with a stand-alone design, convenient carrying handle and an excellent brake. They are robust and smooth running. The battery is housed in a convenient battery drawer and each reel has a probe holder and brake. The reels are equipped with an on/off sensitivity switch, light, buzzer, and a battery test button. The mini reel is sturdy, yet very compact and easy to carry.



Mini Reel
10 m Medium Reel 150 m
20m 200 m
Small Reel
30 m 250 m
50 m 300 m
60 m Large reel 400 m
80 m 450 m
100 m 500 m
120 m 600 m
XL Reel
750 m
900 m
1500 m


Other Options

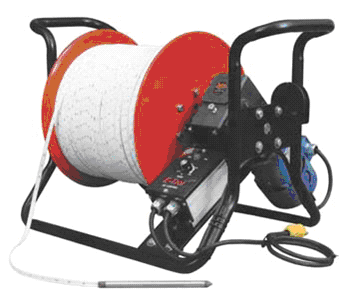

Power Reel

Power reels can be very useful to allow faster or less strenuous operation of longer lengths of tape. The 110 volt power reels are available on request.

Carrying Bag

Padded nylon carrying bags are available, as an optional extra. The sturdy design has a convenient shoulder strap, zippered front pocket, zippered top, and a grommet in the base to prevent moisture build-up.

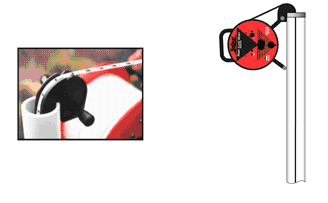

Tape Guide/Datum

A tape guide is provided with each standard Water Level Meter. It protects the tape from damage on rough edges of well casing and ensures easy, consistent measurements, regardless of who takes the readings. It can also provide reel support on the casing, as shown above.
